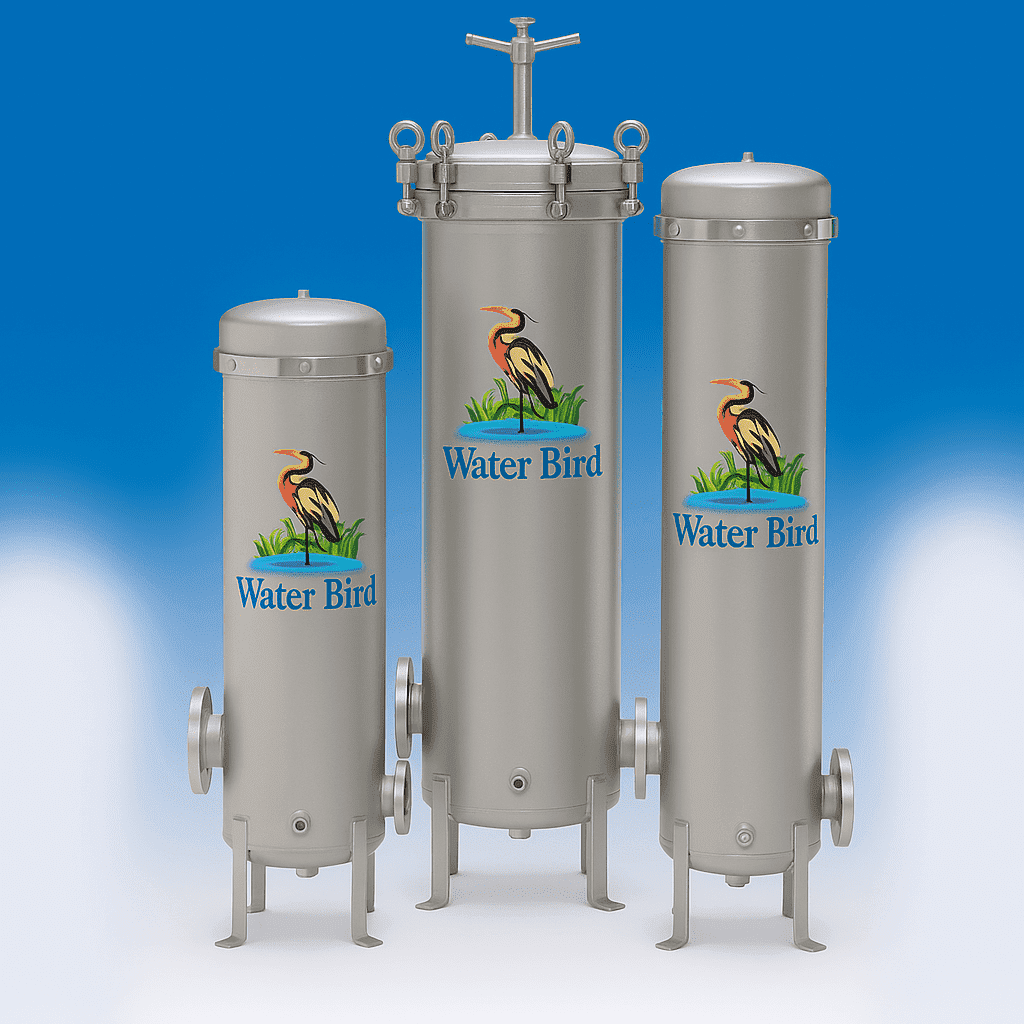

12FOS & 22FOS SERIES

Multi-Cartridge Housings for Industrial Applications

  • Stainless steel filters constructed using heavy-duty 304L or 316L Stainless Steel construction with Band Clamp or Swing Bolt Closure for maximum durability
  • Holds twelve (12) or twenty-two (22) cartridges to service a wide range of flow rates
  • Accepts standard double-open-ended (DOE) style cartridges (222 or 226 style adapters optional)
  • Maximum operating pressure: 150 PSI (10 bar) @ 300ºF (149ºC)
  • Inlet and outlet connections: 3″ flange (12FOS) and 4″ flange (22FOS) (sanitary (TC), BSP, grooved or other pipe fitting options available)
  • Equipped with heavy-duty stainless steel mounting legs
  • Exterior surface finish: Poly-coat over stainless steel (electropolish, other surface finishes are optional)
